Presse à foin ronde et machine de cueillette de paille carrée

The round hay baler machine is a kind of efficient and practical agricultural equipment, mainly used for automatic picking, baling, and unloading operations of broken straw after harvesting in the field.

The machine is especially suitable for corn, wheat, rice, pasture, and other crops for straw processing, and can significantly improve the operating efficiency (up to 1.3-1.65 acres/h).

The final output of the machine is compact straw bales with a density of 180kg/m³ (diameter 50cm×length 80cm), which is convenient for straw collection, transportation and storage.

It is widely used in the field of animal husbandry and comprehensive utilization of straw, and has been exported to many countries such as Holland, Malaysia, Panama, Indonesia, etc., and is well received by users.

Two types of straw hay baler machine

We mainly produce two types of straw balers: round hay balers and square straw balers. They are suitable for different shapes and widths of straw baling needs. Both of them are driven by the PTO power output of the tractor’s three-point suspension, which is highly adaptable and efficient.

Main difference and additional features:

The round baler can use twine or netting for baling in various ways, while the square baler can only use twine for baling, which is more compact.

In addition, we also provide coupe-foin et presse à balles machines with crushing function, which is suitable for the treatment of unbroken straw, realizing the integrated operation of collecting, crushing, and baling.

Advantages of using straw picking and baling machine

• Compact structure, small footprint: the whole machine has a reasonable structure, saving operating space.
• Simple operation, easy to start: simple structure, easy to grasp and use, low training cost.
• Good baling effect: the bale is tight on the outside and loose on the inside, ventilated and airy, which is good for storage.
• Reduce environmental pollution: it can collect the broken straw in the field and avoid the air pollution caused by burning.
• Efficient utilization of resources: the baled straw can be used for paper making, power generation, breeding and other purposes.
• Convenient transportation and storage: the baled straw is neat and compact, which improves the handling and storage efficiency.

Hay pick up baler machine application scopes

• Suitable for picking and baling of hay, silage and forage.
• It is suitable for the baling operation of wheat, rice and kneaded corn straw.
• Meanwhile, it can be used for collecting and baling cotton straw, rape straw, peanut vine, bean straw and other kinds of crop straw.
• It is the ideal choice for the utilization of straw resources in the fields of animal husbandry, papermaking and so on.

Type I : Presse à balles rondes pick-up

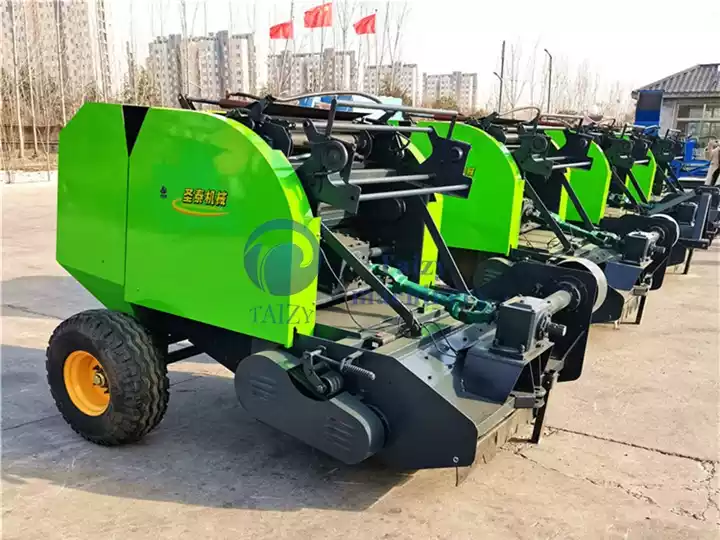

The round hay baler collects material utilizing the front teeth of the machine. The size of the final bale is 70cm in diameter and 100cm in length. The machine is compact, easy to operate, and reliable.

Structure of compact round hay baler

This type of round hay baler mainly includes a picking mechanism, rolling roller mechanism, tying mechanism, bale releasing mechanism, etc.

The formed bale is small and compact, and the bale is loose inside and tight outside, with good air permeability, which is convenient for transportation and storage.

Comment fonctionne la presse à foin ronde ?

Technical data of round hay baler

Modèle	ST80*100
Poids	680 kg
Puissance du tracteur	Plus de 40 ch
Dimension globale	1,63*1,37*1,43m
Taille de la presse	Φ800*1000mm
Poids de la presse	40-50kg
Capacité	1,3-1,65acre/h

Type II : ramasser la presse à balles carrées

This type of pick-up square baler can harvest materials of 2m or 2.2m in width. The final size of the bale is 110cm long, 40cm wide, and 30cm high.

You can choose the right width according to their needs. The square-shaped bales are easy to place and transport. It is an ideal piece of equipment for straw collection.

Structure de la machine d'emballage automatique de ramassage de paille

Les principales pièces de travail comprennent le dispositif de cueillette, le mécanisme de transmission, le dispositif d'alimentation en paille, la structure de pressage des balles, la structure de liage des balles, le dispositif de limitation, la structure de réglage et de contrôle, etc.

Tractor-mounted hay picking and baling machine parameters

modèle	TZ-190
Pouvoir	Tracteur 80-90 CV
Travailler efficacement	6-15km/h
Largeur de travail	1,9 m
Taille des balles	110*40*30cm
Taille	500*280*140cm
Poids	1460kg

Principe de fonctionnement de la machine de cueillette et de mise en balles du foin

• Power source: connected through the tractor’s rear three-point suspension, the tractor’s rear output shaft is utilized to provide running and operating power.
• Picking up and feeding: the picker rotates to pick up the straw on the ground and convey it to the feeding device.
• Compacting and baling: the straw enters the baling chamber evenly and is automatically compacted and baled when it reaches the set volume.
• Automatic bale discharging: after baling is completed, the square bales are discharged from the discharge port, completing the whole baling process.

Pourquoi choisir notre machine de ramassage et de mise en balles de paille ?

• Professional manufacturing team: built by experienced technicians, using high quality materials, reasonable structure and reliable performance.
• Timely and professional service: provide quick response and professional answers to help customers solve problems encountered in the process of use.
• Perfect after-sales protection: enjoy one year of after-sales service. If customers report problems within one year, we will promptly assist in solving, to ensure use of worry-free.

Pannes et solutions

1. Fault: the picking part is blocked by grass.
   Reason: the grass pile is too big, the driving speed is too fast, and the humidity of the workpiece is too high.
   Solution: smaller paille pile, slower working speed, dry working material.
2. Fault: the bale is conical.
   Reason: driving at one end of the grass strip, and the grass strip is thick at one end.
   Solution: drive in the center of the grass strip.
3. Fault: the roller turns the picker does not turn.
   Reason: the safety bolt of the grass picker is cut off.
   Solution : Remplacez le boulon de sécurité.
4. Fault: when there is a broken line in the middle of the bundle.
   Raison: la résistance du dispositif d'alimentation en corde de pression du dispositif de corde, le dispositif de corde Go a un problème.
   Solution: relax the rope and then wear the rope to adjust the spring to reduce the resistance. Check the rope walker.

If you are looking for an efficient, durable, and easy-to-operate straw picker and baler, our products will be your ideal choice. Contact us now to help you reuse your crop straw!
